Product Range

 The Weishaupt range of Digital Burners with Electronic Compound Regulation and Multiflam technology, for oil and gas burners, giving them a level of efficiency and emissions that arguably cannot be bettered by our competition.

Looking at  burners on the market and fire them at high fire, there is nothing much to choose between them on combustion efficiency perhaps 0.5 to 1% CO2 but as one starts to turn the burners down to low fire you separate the burners on their performance.  In this situation when approaching a 2:1 turndown you have burners  having to add unacceptable amounts of excess air to stabilise their flame that they have residual O2 levels of 5 to 10% showing a decrease in CO2 of some 3 to 5%, as they turndown further this O2 figure becomes larger with the burner flame being totally unstable.

The point to strive for is to keep the CO2 as high as possible, the residual O2 level as low as possible by achieving this, the combustion is as close to Stoichiometric as one can leave the burner,  the next point is to hold this combustion condition as near as possible through the turndown range of the burner.

This is the basis on which Weishaupt operate, once this has been achieved, the burners combustion gases are passed through the boiler as slowly as possible allowing the maximum time for the flue gases to transfer heat to the water in the boiler, resulting in maximum efficiencies by lowering the flue temperature.

With the use of variable speed drives for the burner fans and O2 Trim to maximise combustion efficiency and have in the package a proper control system, result of which has shown saving on fuel bills of up to 20%  and in certain cases higher, in certain cases the savings have been in the region of 27%.

With Weishaupt burners fitted to a good boiler having a DIN standard combustion chamber, it is  expected to achieve at high fire 10.5% CO2 @ 2.5% O2,  at low fire (possibly 4:1 turndown this is dependent on boiler back end temperature) something in the region of  9.5 to 10% CO2 @ 3 to 4% O2. With O2 Trim these O2 figures would drop to 1.2% at high fire and 2% at low fire.

When we look at these figures with some of our closest competition at high fire they would show 9.5 to 10% O2 and 3 to 3.5% O2,when looking at low fire many can only turn down to 2:1 showing CO2 figures in the region of 7% and O2 figures in excess of 5% transferring heat out of the boiler to the flue due to extravagant amounts of excess air being used to stabilise the flame.



  • Digital Combustion Management
  • Simple operation
  • Flexible communication possibilities
  • Communication with external systems via Bus
  • New technology advantages
  • Futuristic Fan Technology
  • Innovative Air Damper Control
  • Low electrical consumption
  • Reduced noise reduction
  • Fast Commissioning
  • Simple servicing
  • Flexible control possibilities
  • From 30 Kw to 2600 Kw

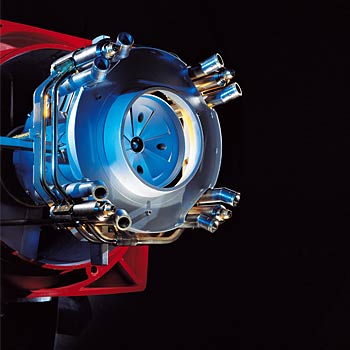

  • LN version low Nox
  • Single and dual fuel burners Natural gas, LPG and oil
  • Can be retrofitted
  • Significant  savings in fuel costs
  • Relative short payback time compared to other products  usually 12 to 18 months,  depending on the size of the project.
  • Fully researched, tested and certified by the Highest European Standards







Oil burners W purflam ® range.

Weishaupt W10–W40 compact gas and oil-fired burners (25–570 kW)

Weishaupt W10–W40 compact gas and oil-fired burners (25–570 kW)

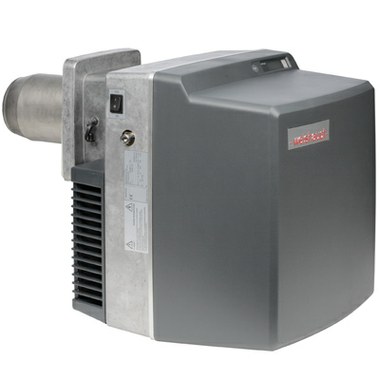

Weishaupt W30–W40 compact dual-fuel burners (70–550 kW)

Gas and oil burners WM Monarch® range

Gas, oil and dual fuel burners Large Burners.

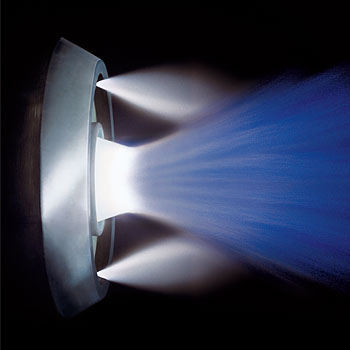

Gas, oil and dual fuel  burners Burners with multiflam®

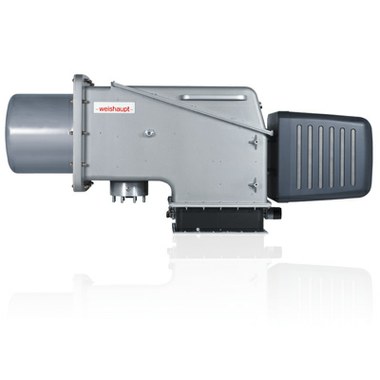

WK-series burners up to 32,000 kW

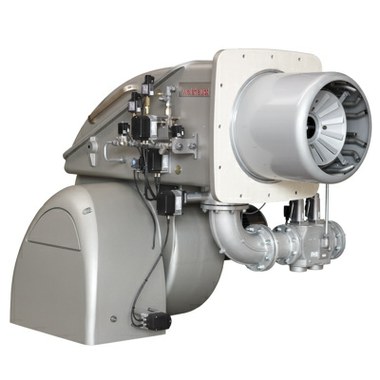

WK mono-series burners (up to 17,000 kW)

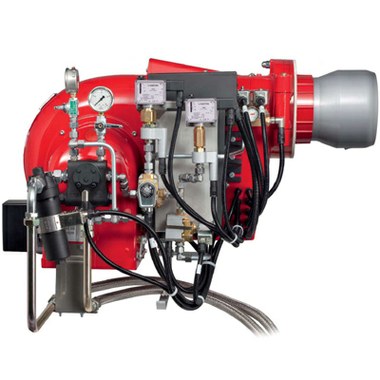

Marine burners
